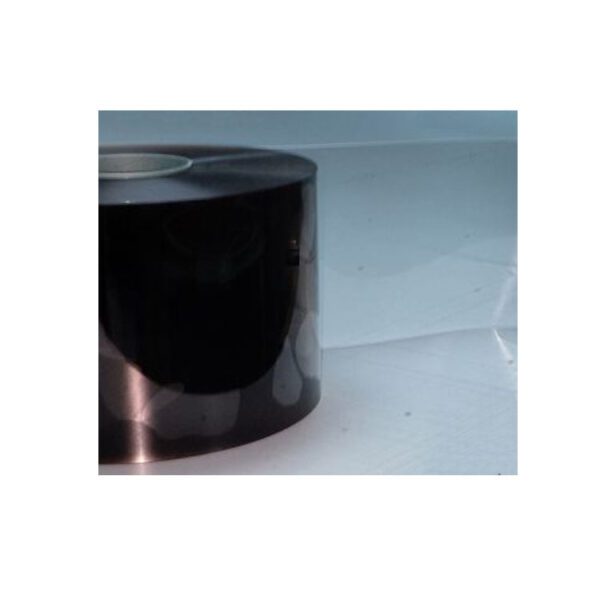

ED8S-300 – 8″ Clear Roll of Standard Flat Econo PVC Strip Door Material
- Width: 8"
- Item #: TRA06-ED8S-300
DACO Corporation is a proud distributor of Trax Industrial Products who is a manufacturer of strip curtain systems for controlling environmental elements within facilities.
NON STOCK ITEM – Ships from Loomis, CA 95650
Cutting charge applies for partial rolls of pvc strip door material.
Additional charge for cutting and punching to specific lengths.
$50.00 minimum order applies.
Roll Specifications
- Material – Standard Econo
- Width – 8″
- Thickness – 0.08″
- Roll Length – 300 ft.
- Roll Tare Weight – 105 lbs.
- Color – Clear
Standard Econo PVC Strip Curtains Material Specifications:
- Finish – Double Polished
- Hardness (15 sec. delay) – 79 A Scale
- Tensile Strength – 2400 psi
- Ultimate Elongation – 350%
- Graves Tear – 440
- 100% Modulus – 1400 psi
- Brittleness Temperature – (-33 °F)
- Operating Temperature – (0 to 150 °F)
- Specific Gravity – 1.21
- Density – 75 lb./cu.ft.
- Thermal Conductivity (K) – 0.73
- Thermal Resistance (R) – 1.37
- UV Resistance – Yes
- Flammability Rating – Compliant with California State Fire Marshal
