CHS – Air Curtain
- Max Mount Height: 11 ft.
- Item #: POW04-CHS
DACO Corporation is a proud distributor of Powered Aire who is a manufacturer of air doors for controlling environmental elements within facilities. Their air curtains can be range from hot to cold and can ensure your facility stays at your desired temperature without worry.
NON STOCK ITEM - Ships from Greenville, PA 16125

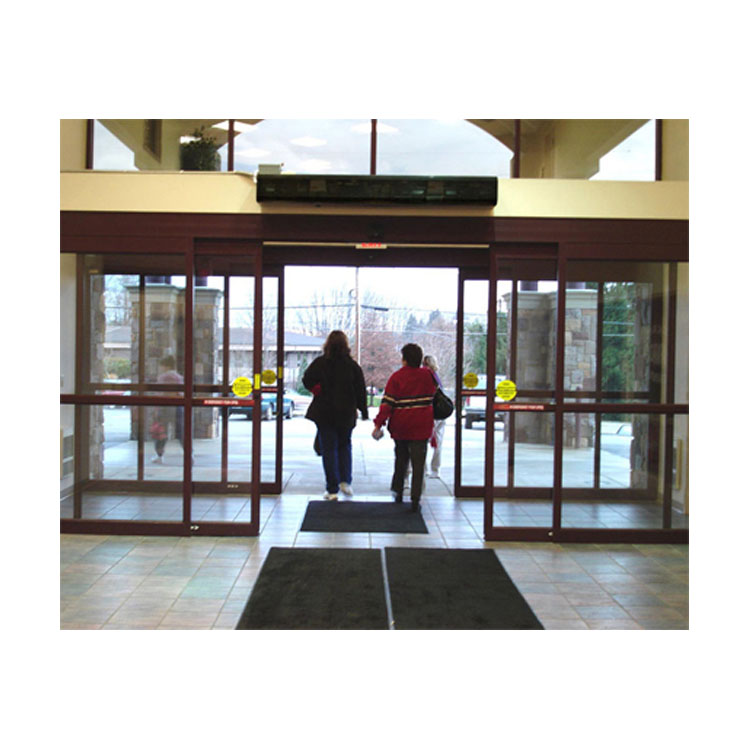

The CHS Air Curtain is designed for use over customer entrance doors in high traffic retail buildings where customer comfort in important, to help protect them from the cold, heat, dust and insects of everyday life. By blowing an controlled stream of air down across the door, the air curtain keeps indoor air in and outdoor air out and to help improve customer comfort and satisfaction, employee productivity and maintain sanitation levels.
These commercial industrial doors are designed for maximum mounting heights of up to 11" for environmental separation and come in (12) sizes from 36" to 12" long.
Construction - Stainless Steel Casing
Recommended Maximum Mounting Height - 11 ft. Environmental Separation
Options Available - Hot Water Heat, Steam Heat
THE POWERED AIRE DIFFERENCE
- Other air curtains aim the discharge of each blower down, resulting in dead spots wherever there are spaces between the blowers.
- A CHS air curtain aims the air from the blowers towards the back of the air curtain, where it fills a plenum and is then forced out evenly across the length of the air curtain.
CHS OPTIONS AVAILABLE:
- Steam and Hot Water Heat
CHS RECOMMENDED OPENINGS:
- Retail Businesses
CHS AIR CURTAIN FEATURES:
- Made of 18 gauge 304, corrosion resistant, stainless steel.
- Heavy duty 1/2 hp, 1075 rpm direct drive motor for longer life.
- Multiple speed motor(s) to control air volume down from maximum speed.
- Provides uniform velocity across the entire length of the discharge area.
- Top and bottom access panels allow service to motors and blowers without lowering the entire unit or removing the coils.
- Galvanized centrifugal fan, double inlet design with zinc plated hubs.
- Protective inlet screen.
- Discharge nozzle designed so that air leaves on a 6 degree plane.
- Creates a positive air seal with directional air foil vane.
- Front air intake - optional top air intake available.
- Wall or top mount.
- Optional 1" recleanable filter.
- ETL Listed.
- Made in the USA.
Construction – Stainless Steel Casing
Recommended Maximum Mounting Height – 11 ft. Environmental Separation
Options Available – Unheated, Electric Heat, Steam Heat, Hot Water Heat
-
Powered Aire Industrial Air Curtain Industrial Brochure
